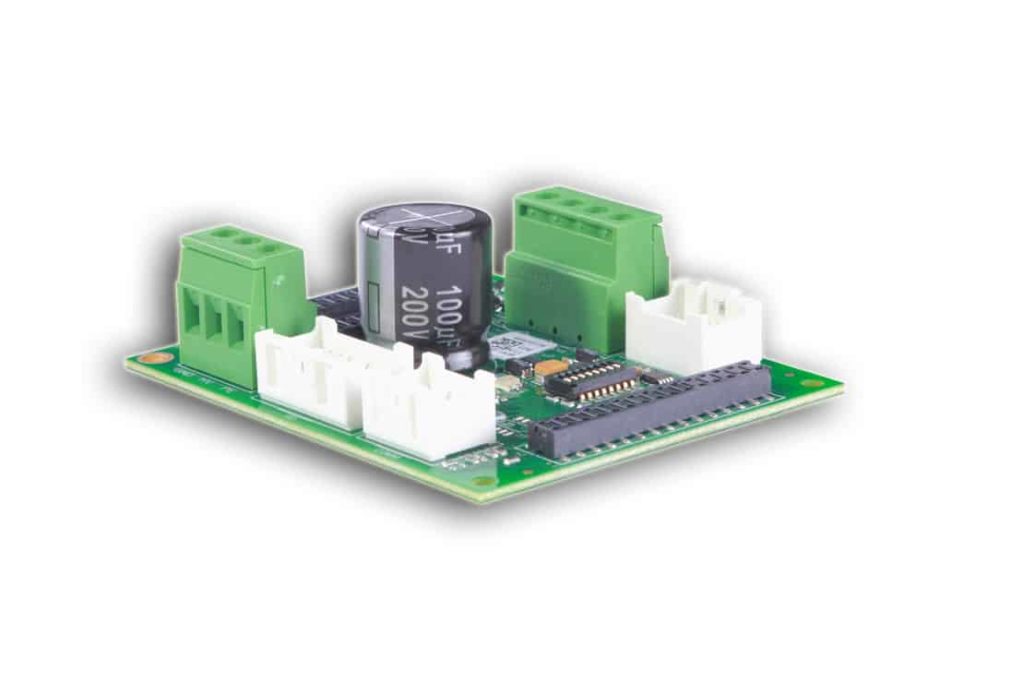

DZRALTE-020L080
PCB Mount
DigiFlex Performance
Product Status: Active
Specifications
Current Continuous (A) 12
Current Peak (A) 20
DC Supply Voltage (VDC) 10 - 80
Network Communication Modbus RTU, RS-485/232
Size (mm) 63.5 x 50.8 x 22.9
Weight (g) 105
The DZRALTE-020L080 DigiFlex® Performance™ pcb mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo driver utilizes RS485 or Modbus RTU communication and is commissioned with DriveWare® via an RS-232 interface.
CONTROL/COMMAND
- ±10 V Analog
- Step & Direction (5V)
- Encoder Following
- Indexing
- Jogging
- Over the Network
- PWM and Direction
- Sequencing
PRIMARY FEEDBACK
- ±10 VDC Position
- Halls
- Incremental Encoder
- Tachometer (±10 VDC)
OPERATING MODE
- Current
- Hall Velocity
- Position
- Velocity
MOTOR TYPE
- Three Phase (Brushless)
- Single Phase (Brushed)
- AC Induction
- Stepper
