AZXBE8A8
The AZXBE8A8 AxCent™ extended environment pcb mount servo motor driver is targeted for centralized control in harsh temperatures or rugged environments, and offers high bandwidth and quick response times.
Specifications
Form Factor
PCB Mount
Family
AxCent
Product Status:
Active
Current Continuous (A)
4
Current Peak (A)
8
DC Supply Voltage (VDC)
10 - 80
AC Supply Voltage (VAC)
-
Network Communication
None
Size (mm)
63.5 x 50.8 x 22.9
Weight (g)
94.5
CONTROL/COMMAND
- ±10 V Analog
PRIMARY FEEDBACK
- Halls
- Incremental Encoder
- Tachometer (±60 VDC)
OPERATING MODE
- Current
- Duty Cycle (Open Loop)
- Velocity
MOTOR TYPE
- Three Phase (Brushless)
- Single Phase (Brushed)
Product Downloads
AZXBE8A8 Datasheet
Zipped folder containing STP, IGS, SLDPRT, STL, and 3D PDF models.
- AxCent™ PCB Mount Ext. Environment HW Installation Manual Installation of Extended Environment AxCent™ PCB mount servo
- Product Identification Determine the part number, serial number and version of your product

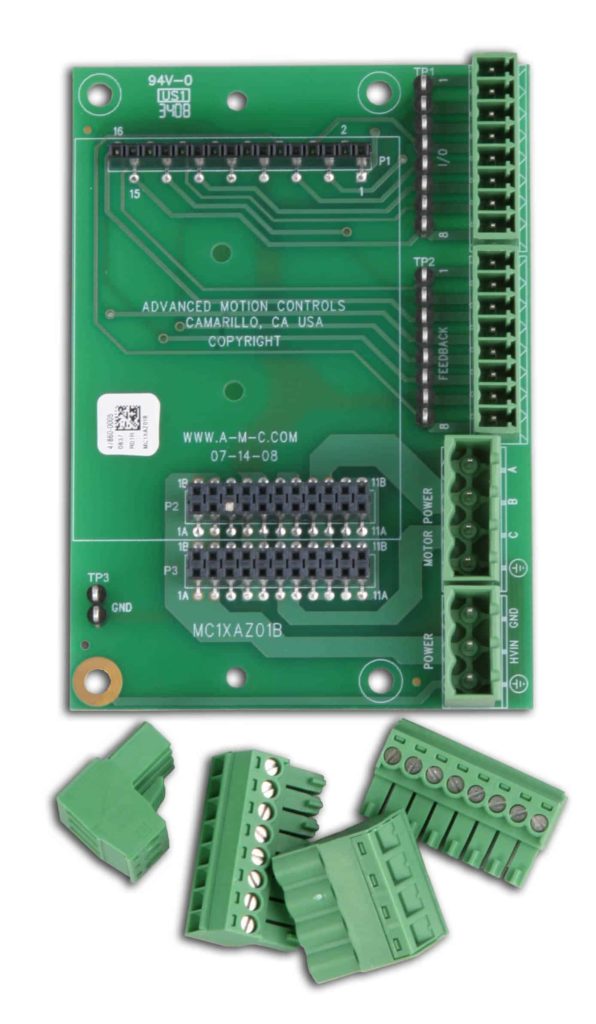

MC1XAZ01
- Family: AxCent
- Current Peak (A): 25
- Continuous Current (A): -
- AC Supply Voltage (VAC): -
- DC Supply Voltage (VDC): -
- Network Comm:
- Functional Safety: -
- Size (mm): 101.6 x 71.9 x 15.7
PT01
- Family: AxCent
- Current Peak (A): -
- Continuous Current (A): -
- AC Supply Voltage (VAC): -
- DC Supply Voltage (VDC): -
- Network Comm:
- Functional Safety: -
- Size (mm): -
