DZCANTE-020L080

Name: DZCANTE-020L080
SKU: DZCANTE-020L080
Availability: InStock

The DZCANTE-020L080 DigiFlex® Performance™ pcb mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes CANopen® communication and is commissioned with DriveWare® via an RS-232 interface.

Specifications

Form Factor PCB Mount

Family DigiFlex Performance

Product Status: Active

Current Continuous (A) 12

Current Peak (A) 20

DC Supply Voltage (VDC) 10 - 80

AC Supply Voltage (VAC) -

Network Communication CANopen

Size (mm) 63.5 x 50.8 x 22.9

Weight (g) 105

Datasheet

Customize this drive

CONTROL/COMMAND

±10 V Analog
Encoder Following
Indexing
Jogging
Over the Network
PWM and Direction
Sequencing

PRIMARY FEEDBACK

±10 VDC Position
Halls
Incremental Encoder
Tachometer (±10 VDC)

OPERATING MODE

Interpolated Position Mode (PVT)
Profile Modes
Cyclic Synchronous Modes
Current
Position
Velocity

MOTOR TYPE

Three Phase (Brushless)
Single Phase (Brushed)
AC Induction
Stepper

Product Downloads

Datasheet

DZCANTE-020L080 Datasheet

CAD

Zipped folder containing STP, IGS, SLDPRT, STL, and 3D PDF models.

DP PCB Mount (CANopen) (DZCANTE) HW Installation Manual |Installation of DigiFlex® Performance™ CANopen PCB mount servo drives

CANopen Communication Manual (DP) CANopen Communication and Object Dictionary for DigiFlex® Performance™

CANopen EDS File (DigiFlex® Performance™) CANopen EDS device description file for DigiFlex® Performance™ (latest version is 1.0.14)

Product Identification Determine the part number, serial number and version of your product

Software Downloads

DriveWare® 7 Quick Reference Quick start-up guide for DriveWare® 7
DriveWare® 7 Release Notes Release notes for latest version of DriveWare® 7 software
DriveWare® 7 Software Configuration software for DigiFlex® Performance™ digital servo drives
DriveWare® 7 User Manual User Manual for DriveWare® 7 software

Application Notes

App Note 001 Performance and benefits comparison between CANOpen, RS232
App Note 003 DigiFlex® Performance™ Drive Peak Current Recovery
App Note 004 RS232 Connection for CAN or Synqnet® Drives
App Note 005 CANOpen Network CAN Bus Cabling Guide
App Note 008 Circuit design recommendations for interfacing with DigiFlex® Performance™ PCB mount drives
App Note 010 PVT Trajectory Generation
App Note 012 CANopen PVT Example
App Note 023 Ferrite Recommendations
App Note 027 Motion Engine, configure internal motion generator for indexing and sequences
App Note 028 Mode Switching, hot switch between modes and gain settings for select digital drives
App Note 030 AC Induction Current Loop Tuning
App Note 034 Programmable Limit Switch (PLS) Examples
App Note 035 Sequencing Overview and Examples
App Note 037 Stepper Motor Setup Process
App Note 039 Connectivity Between Dynomotion and ADVANCED Motion Controls' Servo Drives
App Note 041 DigiFlex® Performance™ Drives in High-Speed Applications
App Note 050 Troubleshooting USB and RS232 Connection Issues
App Note 059 High Speed Capture

Instructional Videos

DriveWare® 7 AutoCommutation Commutate a brushless motor using the DriveWare® 7 Autocommutation feature
DriveWare® 7 Current Loop Tuning Tune the current loop on DigiFlex® Performance™ servo drives
DriveWare® 7 Overview Basic overview of DriveWare® 7 configuration software
Outer Loop Tuning Configuring Position around Velocity and Position around Current with a DigiFlex® Performance™ Servo Drive
Proper Wiring Practices Tips for Proper Wiring and Reducing EMI (Noise)

Compliance and Approvals

CE CE for both Class A Electromagnetic Compatibility and LVD
ISO 9001 Process Quality compliance with ISO 9001:2015 standards
REACh Regulation, Evaluation and Authorization of Chemicals
RoHS III RoHS (Reduction of Hazardous Substances)
UL UL file number E140173 for US and Canadian safety compliance
CMRT Declaration for Conflict Mineral Reporting

White Papers

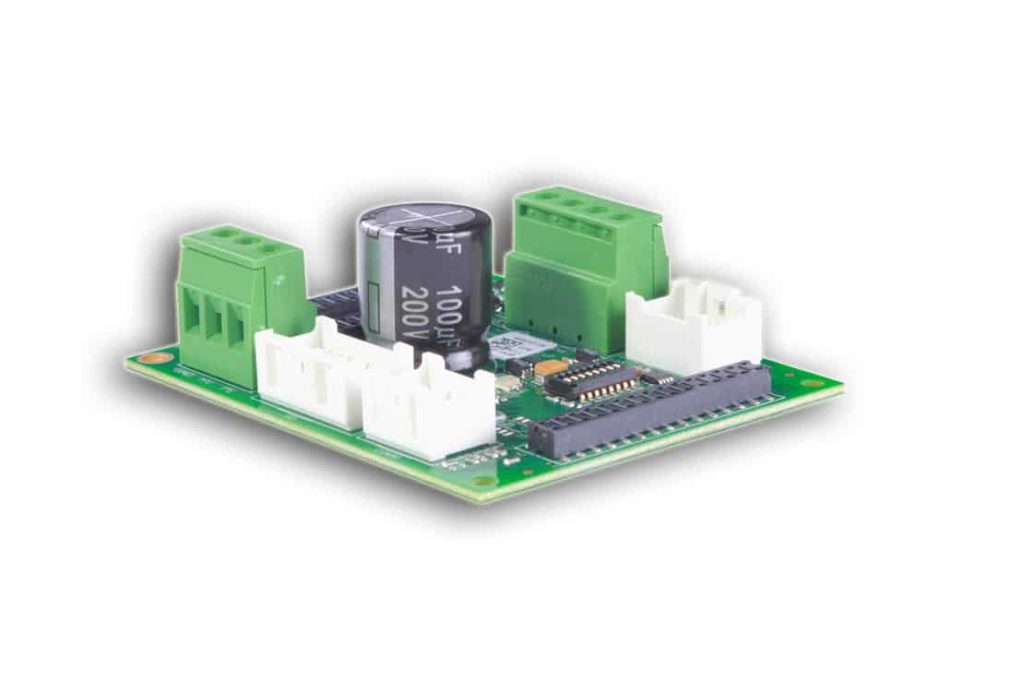

MC1XDZC03

Family: DigiFlex Performance
Current Peak (A): 40
Continuous Current (A): -
AC Supply Voltage (VAC): -
DC Supply Voltage (VDC): -
Network Comm: CANopen
Functional Safety: -
Size (mm): 63.5 x 76.2 x 25.4
