DZEANTU-040B080
The DZEANTU-040B080 DigiFlex® Performance™ pcb mount servo drive offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes EtherCAT® communication and is commissioned with DriveWare® via a USB interface.
Specifications
Form Factor
PCB Mount
Family
DigiFlex Performance
Product Status:
Discontinued
Current Continuous (A)
20
Current Peak (A)
40
DC Supply Voltage (VDC)
18 - 80
AC Supply Voltage (VAC)
-
Network Communication
EtherCAT, DxM Technology
Functional Safety
Safe Torque Off (STO)
Size (mm)
88.9 x 63.5 x 20.1
Weight (g)
126
CONTROL/COMMAND
- ±10 V Analog
- Encoder Following
- Indexing
- Jogging
- Over the Network
- Sequencing
PRIMARY FEEDBACK
- ±10 VDC Position
- 1Vp-p Sine/Cosine Encoder
- BiSS C-Mode
- EnDat® 2.1
- EnDat® 2.2
- Halls
- Hiperface®
- Incremental Encoder
- Tachometer (±10 VDC)
OPERATING MODE
- Profile Modes
- Cyclic Synchronous Modes
- Current
- Position
- Velocity
MOTOR TYPE
- Three Phase (Brushless)
- Single Phase (Brushed)
- AC Induction
- Stepper
Product Downloads
DZEANTU-040B080 Datasheet
Zipped folder containing STP, IGS, SLDPRT, STL, and 3D PDF models.
- DP PCB Mount (EtherCAT) HW Installation Manual Installation of DigiFlex® Performance™ EtherCAT® PCB mount servo drives
- EtherCAT Communication Manual (DP) EtherCAT Communication and Object Dictionary for DigiFlex® Performance™ servo drives
- EtherCAT XML File (DigiFlex® Performance) EtherCAT XML device description file for DigiFlex® Performance Servo Drives
- Product Identification Determine the part number, serial number and version of your product

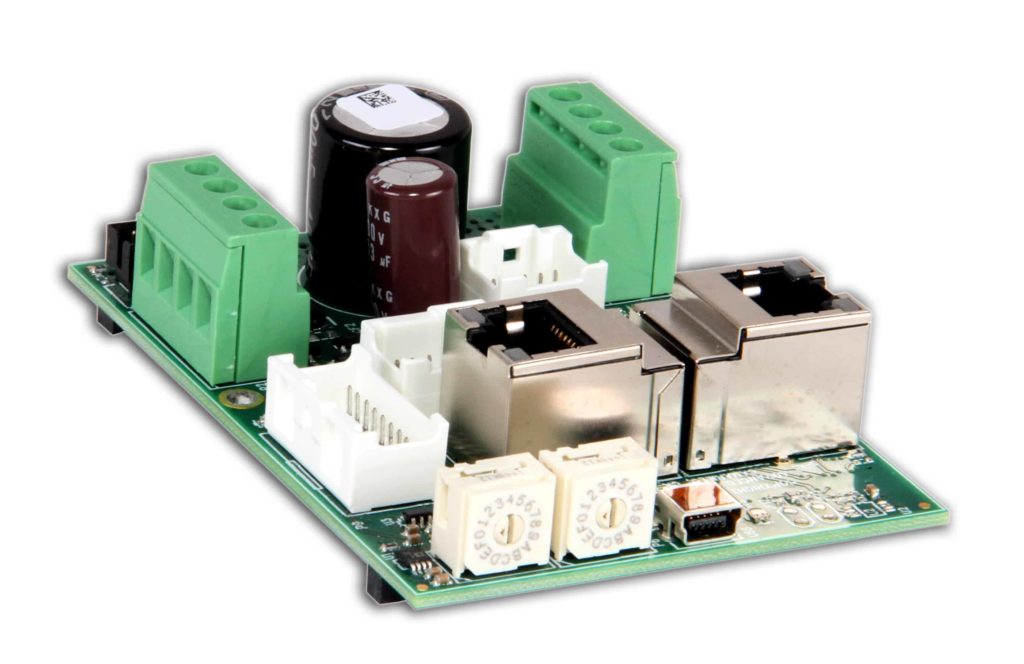

MC1XDZPE01
- Family: DigiFlex Performance
- Current Peak (A): 40
- Continuous Current (A): -
- AC Supply Voltage (VAC): -
- DC Supply Voltage (VDC): -
- Network Comm: EtherCAT, Ethernet POWERLINK, Ethernet, Modbus TCP
- Functional Safety: -
- Size (mm): 63.50 x 88.90 x 26.29

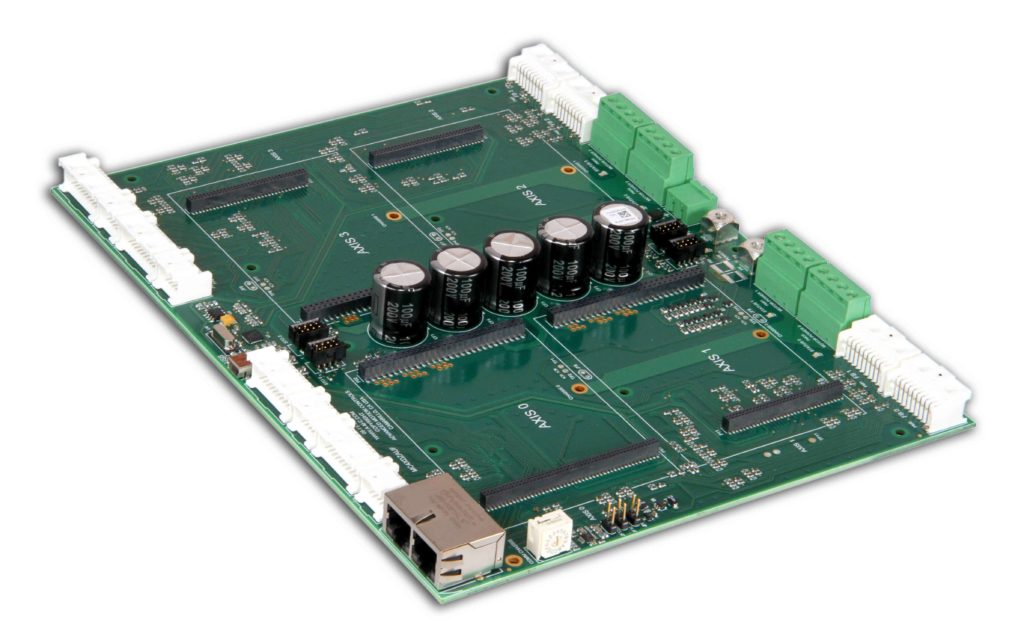

MC4XDZP01
- Family: DigiFlex Performance
- Current Peak (A): 40
- Continuous Current (A): -
- AC Supply Voltage (VAC): -
- DC Supply Voltage (VDC): -
- Network Comm: EtherCAT, DxM Technology
- Functional Safety: -
- Size (mm): 241.30 x 190.50 x 25

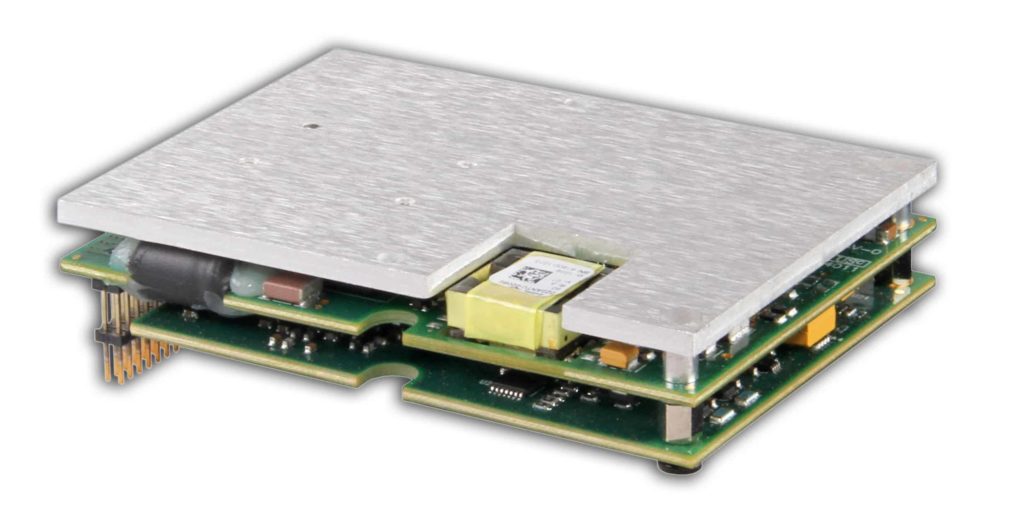

DZSANTU-020B080
- Family: DigiFlex Performance
- Current Peak (A): 20
- Continuous Current (A): 10
- AC Supply Voltage (VAC): -
- DC Supply Voltage (VDC): 18 - 80
- Network Comm: DxM Technology
- Functional Safety: Safe Torque Off (STO)
- Size (mm): 88.9 x 63.5 x 20.1
DZSANTU-040B080
- Family: DigiFlex Performance
- Current Peak (A): 40
- Continuous Current (A): 20
- AC Supply Voltage (VAC): -
- DC Supply Voltage (VDC): 18 - 80
- Network Comm: DxM Technology
- Functional Safety: Safe Torque Off (STO)
- Size (mm): 88.9 x 63.5 x 20.1
