FM060-60C-CM

Name: FM060-60C-CM
SKU: FM060-60C-CM
Availability: InStock

The micro-sized FM060-60C-CM FlexPro® drive with IMPACT™ architecture is an all-purpose digital servo drive for centralized or distributed control systems with CANopen communication. Its compact size makes it perfect for any application where space is a limiting factor. This drive is an alternate version of the FE060-60C-CM, featuring convenient connectors instead of direct plug-in, so you can easily integrate it into any system.

Specifications

Form Factor Machine Embedded

Family FlexPro

Product Status: Active

Current Continuous (A) 60

Current Peak (A) 60

DC Supply Voltage (VDC) 10 - 55

AC Supply Voltage (VAC) -

Network Communication CANopen

Functional Safety Safe Torque Off (STO)

Size (mm) 50.8 x 25.4 x 22.1

Weight (g) 45.4

Datasheet

Customize this drive

CONTROL/COMMAND

±10 V Analog
Step & Direction (5V)
Encoder Following
Indexing
Jogging
Over the Network
Sequencing

PRIMARY FEEDBACK

BiSS C-Mode
EnDat® 2.2
Tamagawa
SSI
Halls
Incremental Encoder
Tachometer (±10 VDC)

OPERATING MODE

Interpolated Position Mode (PVT)
Profile Modes
Cyclic Synchronous Modes
Current
Position
Velocity

MOTOR TYPE

Three Phase (Brushless)
Single Phase (Brushed)
AC Induction
Stepper

Product Downloads

Datasheet

FM060-60C-CM Datasheet

CAD

Zipped folder containing STP, IGS, SLDPRT, and STL models.

FlexPro® PCB Mount HW Installation Manual Installation of FlexPro® PCB Mount servo drives

CANopen Communication Manual (FlexPro) CANopen Communication and Object Dictionary for FlexPro® servo drives

CANopen EDS File (FlexPro®) CANopen EDS device description file for FlexPro® servo drives

FlexPro Wiring Recommendations Wiring recommendations for FlexPro Drives

Software Downloads

ACE™ Software Configuration software for FlexPro™ digital servo drives
ACE™ User Manual User Manual for ACE™ software
ACE™ Quick Start Guide Quick start-up guide for FlexPro™ servo drives
ACE™ Release Notes Release notes for latest version of ACE™ software

Application Notes

App Note 001 Performance and benefits comparison between CANOpen, RS232
App Note 003 DigiFlex® Performance™ Drive Peak Current Recovery
App Note 004 RS232 Connection for CAN or Synqnet® Drives
App Note 005 CANOpen Network CAN Bus Cabling Guide
App Note 010 PVT Trajectory Generation
App Note 012 CANopen PVT Example
App Note 023 Ferrite Recommendations
App Note 027 Motion Engine, configure internal motion generator for indexing and sequences
App Note 028 Mode Switching, hot switch between modes and gain settings for select digital drives
App Note 030 AC Induction Current Loop Tuning
App Note 034 Programmable Limit Switch (PLS) Examples
App Note 035 Sequencing Overview and Examples
App Note 037 Stepper Motor Setup Process
App Note 040 Absolute Feedback Configuration
App Note 041 DigiFlex® Performance™ Drives in High-Speed Applications
App Note 050 Troubleshooting USB and RS232 Connection Issues
App Note 062 Home to Hard Stop

Instructional Videos

Compliance and Approvals

CE CE for both Class A Electromagnetic Compatibility and LVD
Functional Safety FlexPro® Servo Drives with Safe Torque Off
ISO 9001 Process Quality compliance with ISO 9001:2015 standards
REACh Regulation, Evaluation and Authorization of Chemicals
RoHS III RoHS (Reduction of Hazardous Substances)
UL UL file number E140173 for US and Canadian safety compliance
CMRT Declaration for Conflict Mineral Reporting

White Papers

FE060-60C-CM

Family: FlexPro
Current Peak (A): 60
Continuous Current (A): 60
AC Supply Voltage (VAC): -
DC Supply Voltage (VDC): 10 - 55
Network Comm: CANopen
Functional Safety: Safe Torque Off (STO)
Size (mm): 38.1 x 25.4 x 11.5

Get Pricing

See Product

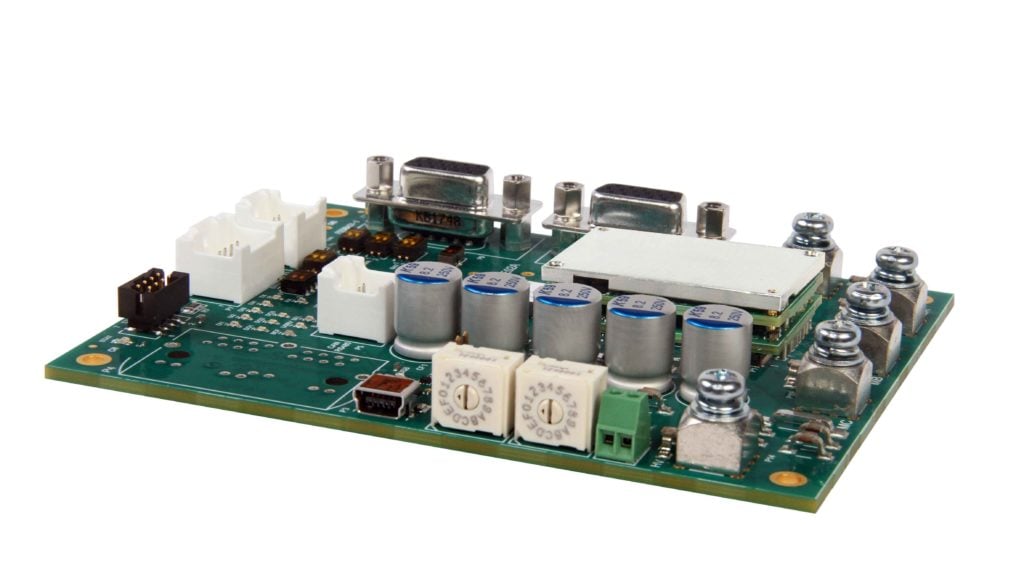

FD060-60C-CM
