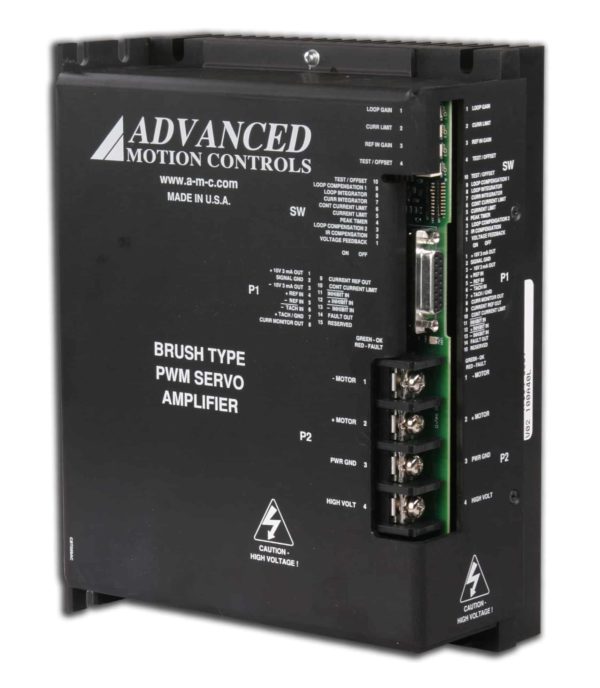

100A40
The 100A40 panel mount servo drive is targeted for centralized control and offers high bandwidth and quick response times.
Specifications
Form Factor
Panel Mount
Family
Classic
Product Status:
Active
Current Continuous (A)
50
Current Peak (A)
100
DC Supply Voltage (VDC)
80 - 400
AC Supply Voltage (VAC)
-
Network Communication
None
Size (mm)
235 x 183.2 x 92.4
Weight (g)
3410
CONTROL/COMMAND
- ±10 V Analog
PRIMARY FEEDBACK
- Tachometer (±60 VDC)
OPERATING MODE
- Current
- IR Compensation
- Velocity
- Voltage
MOTOR TYPE
- Single Phase (Brushed)
Product Downloads
100A40 Datasheet
Zipped folder containing STP, IGS, SLDPRT, STL, and 3D PDF models.
- Classic Analog Drives HW Manual Installation of Analog Panel Mount Servo Drives
- Product Identification Determine the part number, serial number and version of your product
