FD060-25-EM
Development Board
FlexPro
Product Status:
Active
Specifications
Current Continuous (A)
25
Current Peak (A)
50
DC Supply Voltage (VDC)
10 - 55
Network Communication
EtherCAT
Functional Safety
Safe Torque Off (STO)
Size (mm)
114.3 x 91.4 x 28.0
Weight (g)
181.4

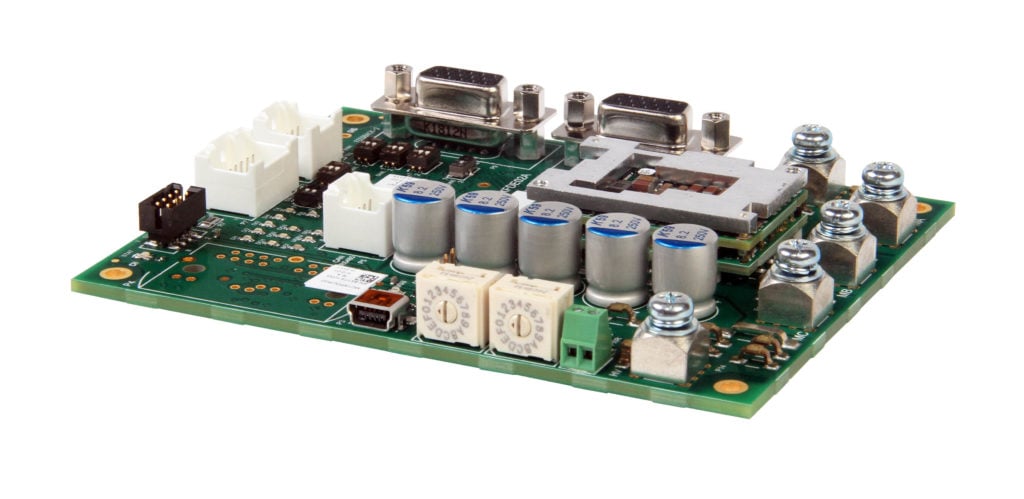

The FD060-25-EM is a servo drive and development board assembly for a FE060-25-EM FlexPro® servo drive with IMPACT architecture. Connections to the controller, motor, power, and feedback are simplified through the standard connectors featured on the board. The FD060-25-EM is ideal for prototyping and can be used in production and industrial environments as well.
CONTROL/COMMAND
- ±10 V Analog
- Step & Direction (5V)
- Encoder Following
- Indexing
- Jogging
- Over the Network
- Sequencing
PRIMARY FEEDBACK
- BiSS C-Mode
- EnDat® 2.2
- Halls
- Incremental Encoder
- Tachometer (±10 VDC)
OPERATING MODE
- Profile Modes
- Cyclic Synchronous Modes
- Current
- Position
- Velocity
MOTOR TYPE
- Three Phase (Brushless)
- Single Phase (Brushed)
- Stepper
Related Products
PRODUCT DOWNLOADS
FD060-25-EM Datasheet
Zipped folder containing STP, IGS, SLDPRT, STL, and 3D PDF models.
- FlexPro® PCB Mount HW Installation Manual Installation of FlexPro® PCB Mount servo drives
- EtherCAT Communication Manual (FlexPro) EtherCAT Communication and Object Dictionary for FlexPro® servo drives
- EtherCAT XML File (FlexPro®) EtherCAT XML device description file for FlexPro® servo drives
- ACE™ Software Configuration software for FlexPro™ digital servo drives
- ACE™ User Manual User Manual for ACE™ software
- ACE™ Quick Start Guide Quick start-up guide for FlexPro™ servo drives
- ACE™ Release Notes Release notes for latest version of ACE™ software
- App Note 001 Performance and benefits comparison between CANOpen, RS232
- App Note 003 DigiFlex® Performance™ Drive Peak Current Recovery
- App Note 017 EtherCAT® PDO Assignments
- App Note 023 Ferrite Recommendations
- App Note 027 Motion Engine, configure internal motion generator for indexing and sequences
- App Note 028 Mode Switching, hot switch between modes and gain settings for select digital drives
- App Note 030 AC Induction Current Loop Tuning
- App Note 034 Programmable Limit Switch (PLS) Examples
- App Note 035 Sequencing Overview and Examples
- App Note 037 Stepper Motor Setup Process
- App Note 040 Absolute Feedback Configuration
- App Note 041 DigiFlex® Performance™ Drives in High-Speed Applications
- App Note 050 Troubleshooting USB and RS232 Connection Issues
- Multi-Axis EtherCAT Configuration Tutorial on configuring a 4-axis servo drive system on an EtherCAT network bus and a TwinCAT controller
- Proper Wiring Practices Tips for Proper Wiring and Reducing EMI (Noise)
- EtherCAT® Advantage Highlights the latest options in motion control systems with EtherCAT®
