FD100-50-RM
The FD100-50-RM is a servo drive and development board assembly for a FE100-50-RM FlexPro® servo drive with IMPACT™ architecture. Connections to the controller, motor, power, and feedback are simplified through the standard connectors featured on the board. The FD100-50-RM is ideal for prototyping and can be used in production and industrial environments as well.
Specifications
Form Factor
Development Board
Family
FlexPro
Product Status:
Active
Current Continuous (A)
50
Current Peak (A)
100
DC Supply Voltage (VDC)
20 - 90
AC Supply Voltage (VAC)
-
Network Communication
RS-485/232
Functional Safety
Safe Torque Off (STO)
Size (mm)
133.4 x 127.0 x 17.6
Weight (g)
280.7
CONTROL/COMMAND
- ±10 V Analog
- Step & Direction (5V)
- Encoder Following
- Indexing
- Jogging
- Over the Network
- Sequencing
PRIMARY FEEDBACK
- BiSS C-Mode
- EnDat® 2.2
- Tamagawa
- SSI
- Halls
- Incremental Encoder
- Tachometer (±10 VDC)
OPERATING MODE
- Current
- Hall Velocity
- Position
- Velocity
MOTOR TYPE
- Three Phase (Brushless)
- Single Phase (Brushed)
- AC Induction
- Stepper
Product Downloads
FD100-50-RM Datasheet
- FlexPro® PCB Mount HW Installation Manual Installation of FlexPro® PCB Mount servo drives
- RS485 Communication Manual (FlexPro) RS485 / 232 Communication and Object Dictionary for FlexPro® servo drives
- FlexPro Wiring Recommendations Wiring recommendations for FlexPro Drives

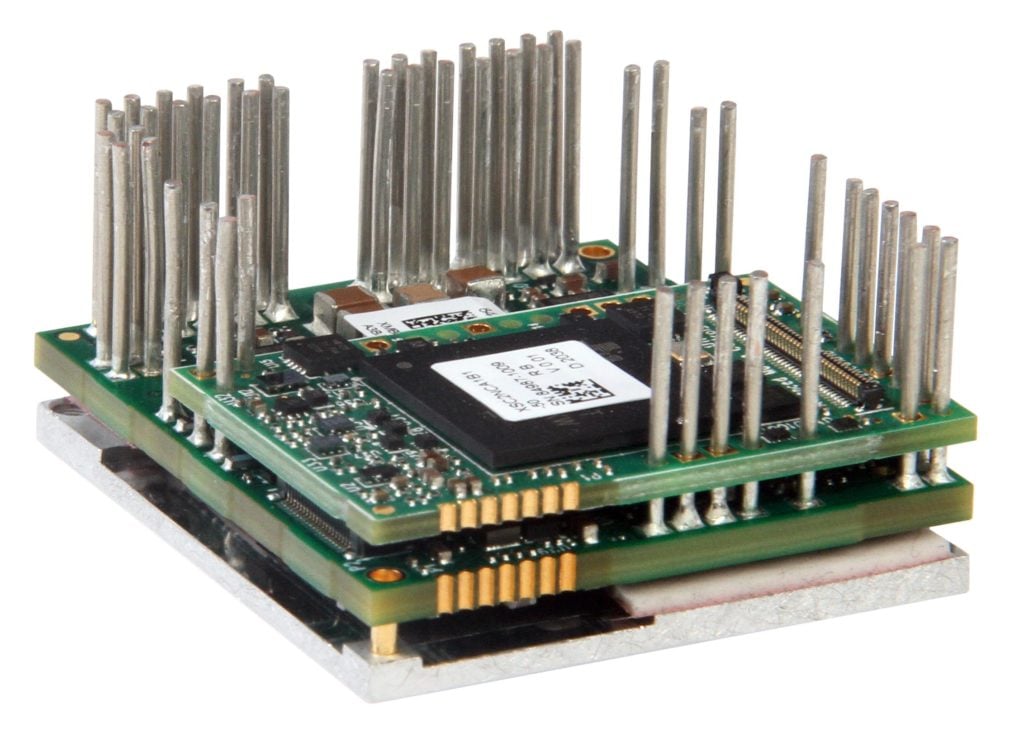

FE100-50-RM
- Family: FlexPro
- Current Peak (A): 100
- Continuous Current (A): 50
- AC Supply Voltage (VAC): -
- DC Supply Voltage (VDC): 20 - 90
- Network Comm: RS-485/232
- Functional Safety: Safe Torque Off (STO)
- Size (mm): 43.2 x 38.1 x 12.4
