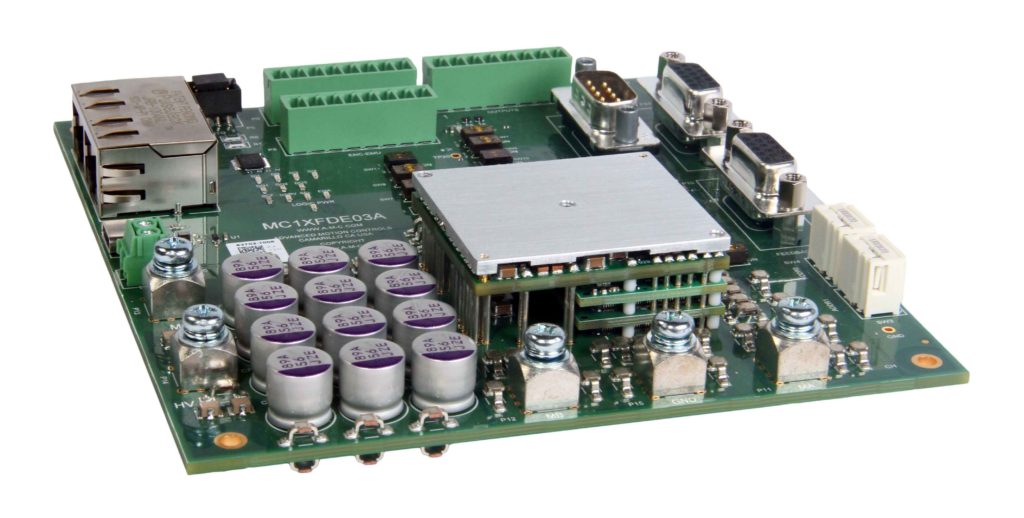

FE100-50-RM
PCB Mount
FlexPro
Product Status:
Active
Specifications
Current Continuous (A)
50
Current Peak (A)
100
DC Supply Voltage (VDC)
20 - 90
Network Communication
RS-485/232
Functional Safety
Safe Torque Off (STO)
Size (mm)
43.2 x 38.1 x 12.4
Weight (g)
42.5
The FE100-50-RM FlexPro® pcb mount servo drive with IMPACT architecture offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive features an RS485/232 interface for network communication and is commissioned via a USB interface.
CONTROL/COMMAND
- ±10 V Analog
- Step & Direction (5V)
- Encoder Following
- Indexing
- Jogging
- Over the Network
- Sequencing
PRIMARY FEEDBACK
- BiSS C-Mode
- EnDat® 2.2
- Tamagawa
- Halls
- Incremental Encoder
- Tachometer (±10 VDC)
OPERATING MODE
- Current
- Hall Velocity
- Position
- Velocity
MOTOR TYPE
- Three Phase (Brushless)
- Single Phase (Brushed)
- AC Induction
- Stepper
Related Products
PRODUCT DOWNLOADS
FE100-50-RM Datasheet
Zipped folder containing STP, IGS, SLDPRT, and STL models.
- FlexPro® PCB Mount HW Installation Manual Installation of FlexPro® PCB Mount servo drives
- RS485 Communication Manual (FlexPro) RS485 / 232 Communication and Object Dictionary for FlexPro® servo drives
- ACE™ Software Configuration software for FlexPro™ digital servo drives
- ACE™ User Manual User Manual for ACE™ software
- ACE™ Quick Start Guide Quick start-up guide for FlexPro™ servo drives
- ACE™ Release Notes Release notes for latest version of ACE™ software
- App Note 001 Performance and benefits comparison between CANOpen, RS232
- App Note 003 DigiFlex® Performance™ Drive Peak Current Recovery
- App Note 023 Ferrite Recommendations
- App Note 027 Motion Engine, configure internal motion generator for indexing and sequences
- App Note 028 Mode Switching, hot switch between modes and gain settings for select digital drives
- App Note 030 AC Induction Current Loop Tuning
- App Note 034 Programmable Limit Switch (PLS) Examples
- App Note 035 Sequencing Overview and Examples
- App Note 037 Stepper Motor Setup Process
- App Note 040 Absolute Feedback Configuration
- App Note 041 DigiFlex® Performance™ Drives in High-Speed Applications
- App Note 050 Troubleshooting USB and RS232 Connection Issues
- Proper Wiring Practices Tips for Proper Wiring and Reducing EMI (Noise)
