FE060-25-EM
The FE060-25-EM FlexPro® pcb mount servo drive with IMPACT™ architecture offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes EtherCAT® communication and is commissioned via a USB interface.
Specifications
Form Factor
PCB Mount
Family
FlexPro
Product Status:
Active
Current Continuous (A)
25
Current Peak (A)
50
DC Supply Voltage (VDC)
10 - 55
AC Supply Voltage (VAC)
-
Network Communication
EtherCAT
Functional Safety
Safe Torque Off (STO)
Size (mm)
38.1 x 25.4 x 16.0
Weight (g)
22.7
CONTROL/COMMAND
- ±10 V Analog
- Step & Direction (5V)
- Encoder Following
- Indexing
- Jogging
- Over the Network
- Sequencing
PRIMARY FEEDBACK
- BiSS C-Mode
- EnDat® 2.2
- Halls
- Incremental Encoder
- Tachometer (±10 VDC)
OPERATING MODE
- Profile Modes
- Cyclic Synchronous Modes
- Current
- Position
- Velocity
MOTOR TYPE
- Three Phase (Brushless)
- Single Phase (Brushed)
- Stepper
Product Downloads
FE060-25-EM Datasheet
Zipped folder containing STP, IGS, SLDPRT, STL, and 3D PDF models.
- FlexPro® PCB Mount HW Installation Manual Installation of FlexPro® PCB Mount servo drives
- EtherCAT Communication Manual (FlexPro) EtherCAT Communication and Object Dictionary for FlexPro® servo drives
- EtherCAT XML File (FlexPro®) EtherCAT XML device description file for FlexPro® servo drives
- FlexPro Wiring Recommendations Wiring recommendations for FlexPro Drives

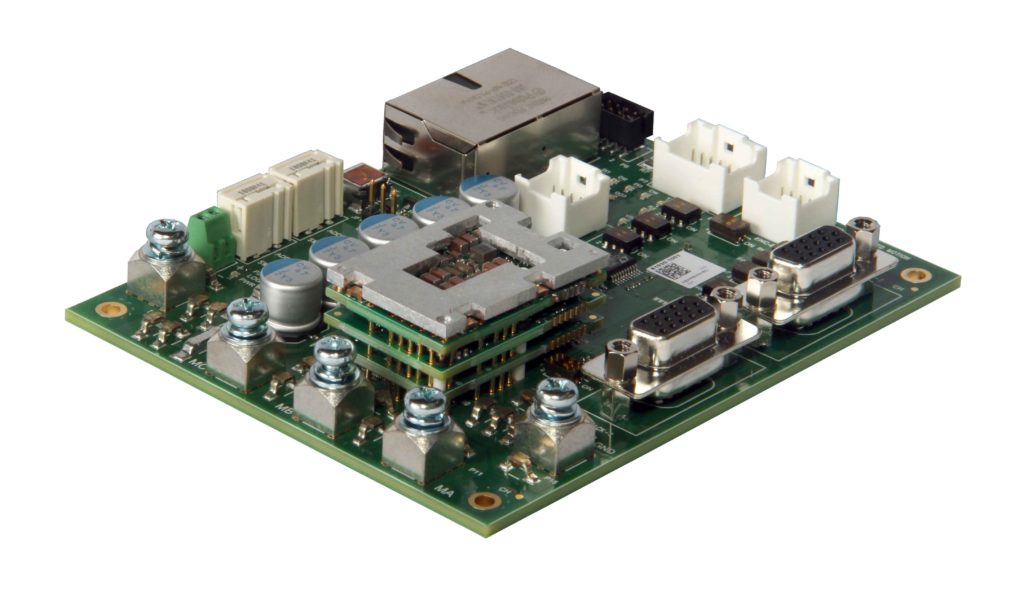

FD060-25-EM
- Family: FlexPro
- Current Peak (A): 50
- Continuous Current (A): 25
- AC Supply Voltage (VAC): -
- DC Supply Voltage (VDC): 10 - 55
- Network Comm: EtherCAT
- Functional Safety: Safe Torque Off (STO)
- Size (mm): 114.3 x 91.4 x 28.0
FM060-25-EM
- Family: FlexPro
- Current Peak (A): 50
- Continuous Current (A): 25
- AC Supply Voltage (VAC): -
- DC Supply Voltage (VDC): 10 - 55
- Network Comm: EtherCAT
- Functional Safety: Safe Torque Off (STO)
- Size (mm): 50.8 x 25.4 x 26.0

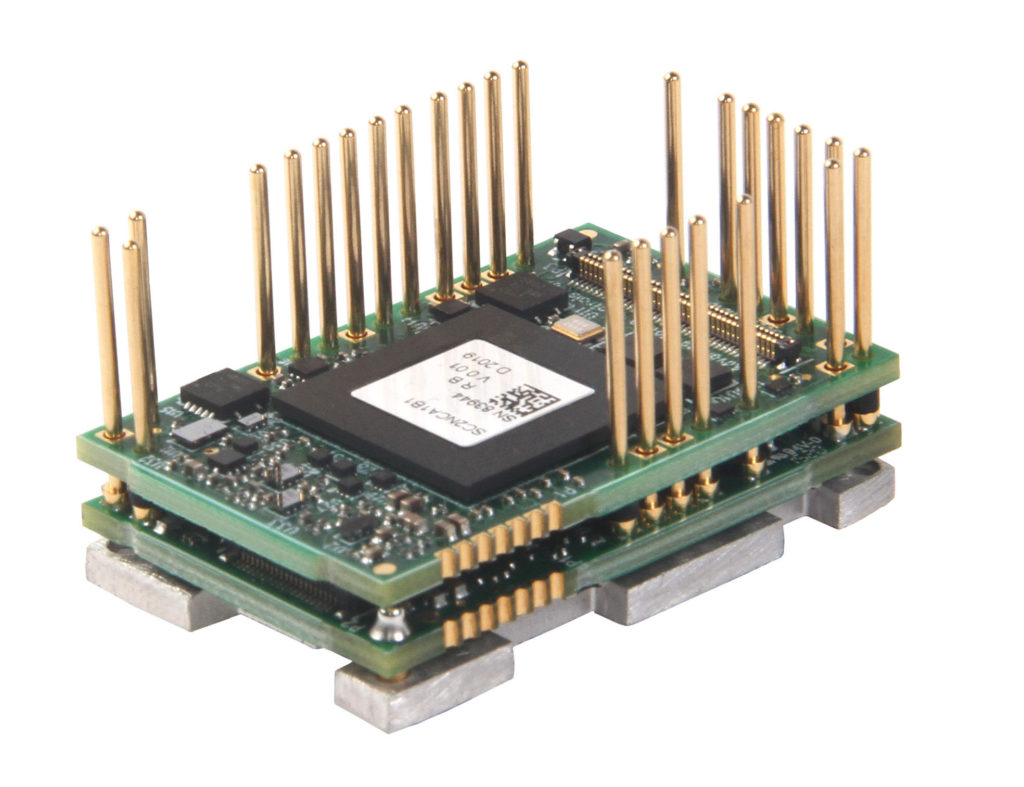

FE060-25-CM
