FM100-50-EM
Machine Embedded
FlexPro
Product Status:
Active
Specifications
Current Continuous (A)
50
Current Peak (A)
100
DC Supply Voltage (VDC)
20 - 90
Network Communication
EtherCAT
Functional Safety
Safe Torque Off (STO)
Size (mm)
50.8 x 43.2 x 26.9
Weight (g)
90.8

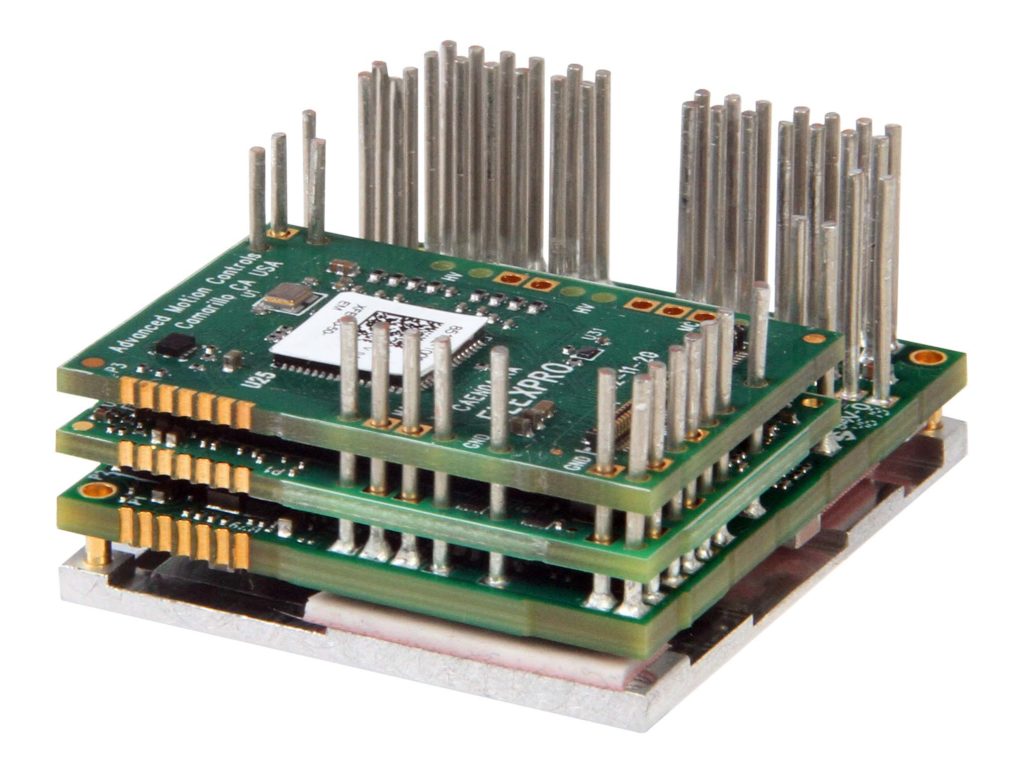

The mini-sized FM100-50-EM FlexPro® drive with IMPACT™ architecture is an all-purpose digital servo drive for centralized or distributed control systems with EtherCAT® communication. Its compact size makes it perfect for any application where space is a limiting factor. This drive is an alternate version of the FE100-50-EM, featuring convenient connectors instead of direct plug-in, so you can easily integrate it into any system.
CONTROL/COMMAND
- ±10 V Analog
- Step & Direction (5V)
- Encoder Following
- Indexing
- Jogging
- Over the Network
- Sequencing
PRIMARY FEEDBACK
- BiSS C-Mode
- EnDat® 2.2
- Halls
- Incremental Encoder
- Tachometer (±10 VDC)
OPERATING MODE
- Profile Modes
- Cyclic Synchronous Modes
- Current
- Position
- Velocity
MOTOR TYPE
- Three Phase (Brushless)
- Single Phase (Brushed)
- Stepper
Related Products
PRODUCT DOWNLOADS
FM100-50-EM Datasheet
Zipped folder containing STP, IGS, SLDPRT, and STL models.
- FlexPro® PCB Mount HW Installation Manual Installation of FlexPro® PCB Mount servo drives
- EtherCAT Communication Manual (FlexPro) EtherCAT Communication and Object Dictionary for FlexPro® servo drives
- EtherCAT XML File (FlexPro®) EtherCAT XML device description file for FlexPro® servo drives
- FlexPro Wiring Recommendations Wiring recommendations for FlexPro Drives
- ACE™ Software Configuration software for FlexPro™ digital servo drives
- ACE™ User Manual User Manual for ACE™ software
- ACE™ Quick Start Guide Quick start-up guide for FlexPro™ servo drives
- ACE™ Release Notes Release notes for latest version of ACE™ software
- App Note 001 Performance and benefits comparison between CANOpen, RS232
- App Note 003 DigiFlex® Performance™ Drive Peak Current Recovery
- App Note 017 EtherCAT® PDO Assignments
- App Note 023 Ferrite Recommendations
- App Note 027 Motion Engine, configure internal motion generator for indexing and sequences
- App Note 028 Mode Switching, hot switch between modes and gain settings for select digital drives
- App Note 030 AC Induction Current Loop Tuning
- App Note 034 Programmable Limit Switch (PLS) Examples
- App Note 035 Sequencing Overview and Examples
- App Note 037 Stepper Motor Setup Process
- App Note 040 Absolute Feedback Configuration
- App Note 041 DigiFlex® Performance™ Drives in High-Speed Applications
- App Note 050 Troubleshooting USB and RS232 Connection Issues
- Multi-Axis EtherCAT Configuration Tutorial on configuring a 4-axis servo drive system on an EtherCAT network bus and a TwinCAT controller
- Proper Wiring Practices Tips for Proper Wiring and Reducing EMI (Noise)
- CE CE for both Class A Electromagnetic Compatibility and LVD
- ISO 9001 Process Quality compliance with ISO 9001:2015 standards
- REACh Regulation, Evaluation and Authorization of Chemicals
- RoHS III RoHS (Reduction of Hazardous Substances)
- UL UL file number E140173 for US and Canadian safety compliance
- CMRT Declaration for Conflict Mineral Reporting
- EtherCAT® Advantage Highlights the latest options in motion control systems with EtherCAT®
