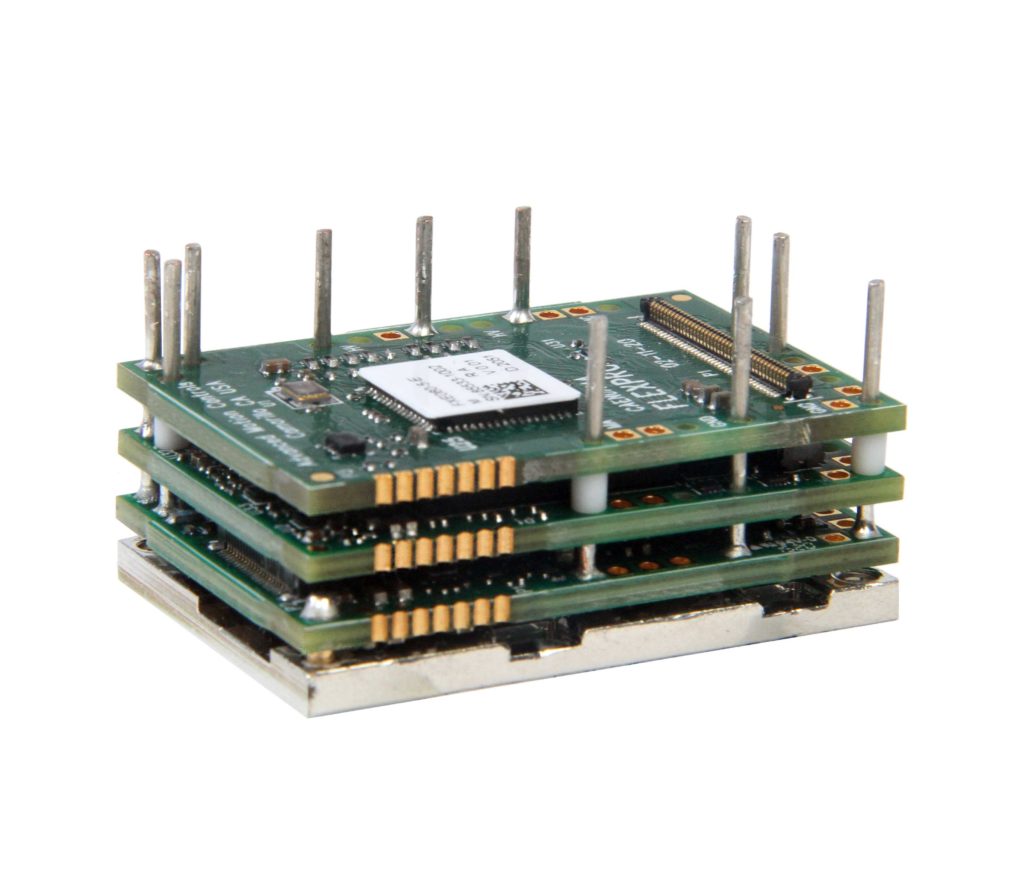

FXE060-5-CM

PCB Mount
  FlexPro
Product Status: Active
Specifications
Current Continuous (A) 5
Current Peak (A) 10
DC Supply Voltage (VDC) 10 - 55
Network Communication CANopen
Functional Safety Safe Torque Off (STO)
Size (mm) 38.1 x 25.4 x 11.5
Weight (g) 19.8

The FXE060-5-CM FlexPro® Extended Environment servo drive with IMPACT™ architecture offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes CANopen communication and is commissioned via a USB interface.

CONTROL/COMMAND

  • ±10 V Analog
  • Step & Direction (5V)
  • Encoder Following
  • Indexing
  • Jogging
  • Over the Network
  • Sequencing

PRIMARY FEEDBACK

  • BiSS C-Mode
  • EnDat® 2.2
  • Tamagawa
  • SSI
  • Halls
  • Incremental Encoder
  • Tachometer (±10 VDC)

OPERATING MODE

  • Interpolated Position Mode (PVT)
  • Profile Modes
  • Cyclic Synchronous Modes
  • Current
  • Position
  • Velocity

MOTOR TYPE

  • Three Phase (Brushless)
  • Single Phase (Brushed)
  • AC Induction
  • Stepper
