FE060-10-CM
PCB Mount
FlexPro
Product Status:
Active
Specifications
Current Continuous (A)
10
Current Peak (A)
20
DC Supply Voltage (VDC)
10 - 55
Network Communication
CANopen
Functional Safety
Safe Torque Off (STO)
Size (mm)
38.1 x 25.4 x 11.5
Weight (g)
19.8

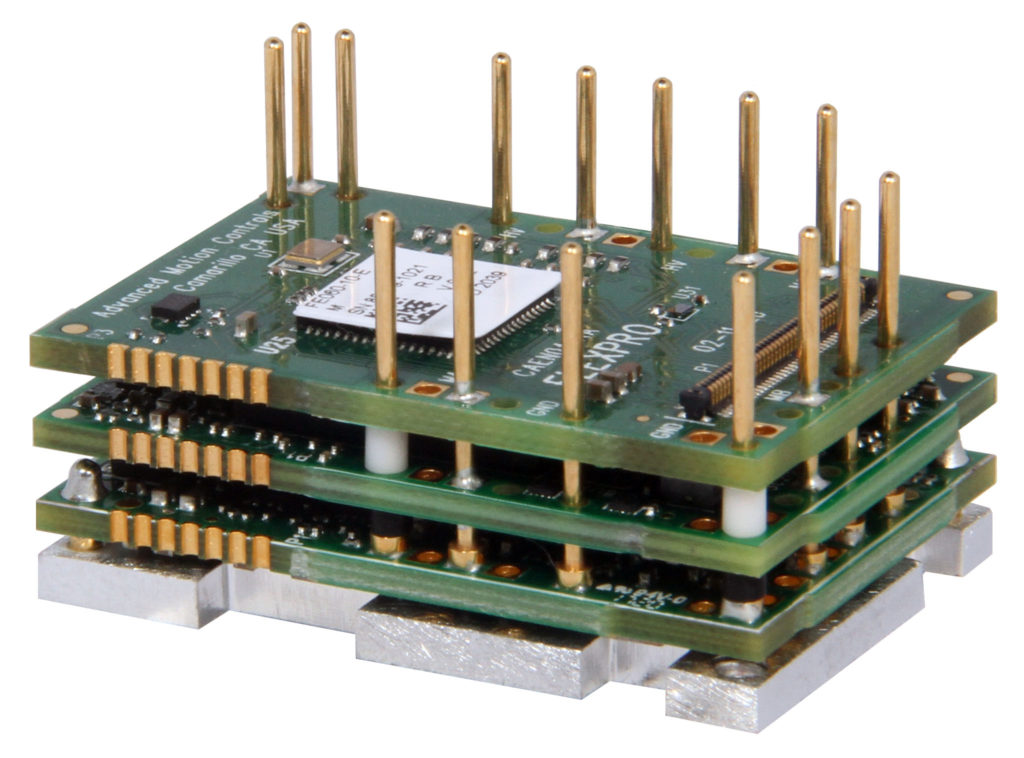

The FE060-10-CM FlexPro® pcb mount servo drive with IMPACT™ architecture offers full tuning control of all servo loops and is designed for distributed or centralized servo systems. This servo drive utilizes CANopen communication and is commissioned via a USB interface.
CONTROL/COMMAND
- ±10 V Analog
- Step & Direction (5V)
- Encoder Following
- Indexing
- Jogging
- Over the Network
- Sequencing
PRIMARY FEEDBACK
- BiSS C-Mode
- EnDat® 2.2
- Tamagawa
- SSI
- Halls
- Incremental Encoder
- Tachometer (±10 VDC)
OPERATING MODE
- Interpolated Position Mode (PVT)
- Profile Modes
- Cyclic Synchronous Modes
- Current
- Position
- Velocity
MOTOR TYPE
- Three Phase (Brushless)
- Single Phase (Brushed)
- AC Induction
- Stepper
