FM060-10-EM

Machine Embedded
FlexPro
Product Status: Active
Specifications
Current Continuous (A) 10
Current Peak (A) 20
DC Supply Voltage (VDC) 10 - 55
Network Communication EtherCAT
Functional Safety Safe Torque Off (STO)
Size (mm) 50.8 x 25.4 x 26.0
Weight (g) 36.9

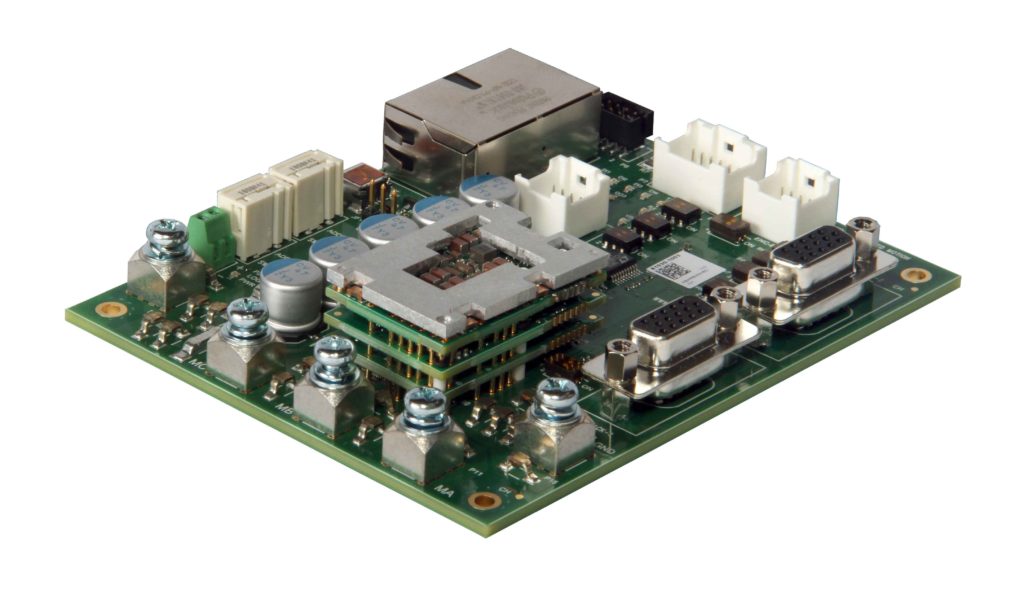

The micro-sized FM060-10-EM FlexPro™ drive with IMPACT™ architecture is an all-purpose digital servo drive for centralized or distributed control systems with EtherCAT® communication. Its compact size makes it perfect for any application where space is a limiting factor. This drive is an alternate version of the FE060-10-EM, featuring convenient connectors instead of direct plug-in, so you can easily integrate it into any system.

CONTROL/COMMAND

  • ±10 V Analog
  • Step & Direction (5V)
  • Encoder Following
  • Indexing
  • Jogging
  • Over the Network
  • Sequencing

PRIMARY FEEDBACK

  • ±10 VDC Position
  • BiSS C-Mode
  • Halls
  • Incremental Encoder
  • Tachometer (±10 VDC)

OPERATING MODE

  • Profile Modes
  • Cyclic Synchronous Modes
  • Current
  • Position
  • Velocity

MOTOR TYPE

  • Three Phase (Brushless)
  • Single Phase (Brushed)
  • AC Induction
  • Stepper
